●Built in 12 Poe interfaces, supporting POE IPC direct power supply

●Support IEEE802.3af/at standard, compatible with power receiving equipment (PD) supporting

IEEE802.3af/at

●Supports 12 channels of 4K access; supports face capture, face comparison, and license plate recognition

functions;

●Face capture comparison working mode:

Front-capture and front-comparison mode: connected to 12 channels of face capture and comparison cameras,

capable of 12-channel full-channel comparison; front-capture and front-comparison camera: T5AI-F

Mixed mode: Connect to 12 channels of ordinary cameras, select 1 channel to enable AI support, and then

capture and perform ordinary monitoring than other channels;

●Supports 4K video output, and HDMI supports simultaneous audio output;

●Optimize resource bandwidth and support 80M access;

●Built-in face database, which can store up to 1,000 faces;

●Supports alarm functions such as human shape detection and vehicle shape detection with P6S camera.

●Supports face capture and face comparison (use video recorder to empower AI or cooperate with T5AI

camera);

●Supports quick storage of faces on captured pages, and supports batch import of faces into the database;

●Supports searching for videos by person’s name and face image; video search is faster

●Supports a variety of comparison rules, supports linked video recorder pop-up alarms, voice broadcasts and

other functions;

●Supports speaker interface for on-site monitoring of camera sound; supports 3.5mm audio interface for

expandable input and output;

●Supports access to 2 hard drives, the largest hard drive supports 14T;

●Video playback is displayed on the timeline, and the video type is indicated by color, making it easy and fast

to retrieve video data;

●Supports video backup function, and the backup can be accurate to the second;

●Supports batch modification of front-end camera addresses, automatic picture output, and cross-network

segment picture output functions;

●Support ONVIF protocol;

●Supports the function of controlling front-end camera image parameters;

●Multiple playback modes, fast forward, rewind and other functions;

●EasyVMS computer client software can be used to remotely monitor and play back recordings;

●You can use Dr. Rui/P6SLite mobile phone software to remotely monitor and play back recordings;

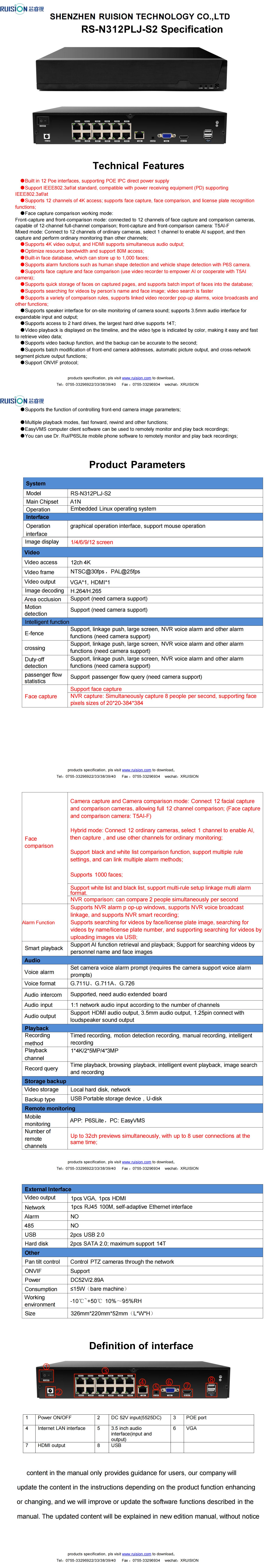

RS-312PLJ-S2_EN -Smart AI.pdf
